Autarkic, continuous level measurement in plastic vessels
Autarkic sensor with measured value transmission by radio technology

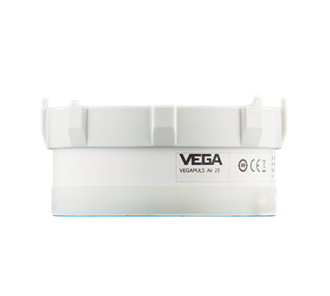

VEGAPULS Air 23
应用范围
NB-IoT/CAT-M1, LoRa, measuring range up to 3m, accuracy +/-5mm
VEGAPULS Air 23 is the ideal sensor for level measurement in IBCs and plastic vessels. The instrument measures through the closed vessel ceiling and is suitable for nearly all liquids and bulk solids. VEGAPULS Air 23 is quickly mounted by simple and reliable adhesive, ceiling or tension belt mounting. Since no additional power supply is necessary, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the vessel.
您的获益
测量精确度高，不受填料，过程和环境条件影响
Maintenance-free operation due to non-contact 80 GHz radar technology
Easy installation thanks to autarkic voltage supply and radio technology
技术参数
量程 - 距离
3 m [Meter - Foot]
过程温度
-20 ... 60 °C [°C - °F]
测量精度
± 5 mm
Frequency
80 GHz
Beam angle
8°
螺纹连接
via adhesive, ceiling or tension belt mounting
外壳材料
Plastic / PVDF
保护方式
IP69
输出
NB-IoT (LTE-Cat-NB1), LTE-M (LTECAT-M1), LoRa WAN
环境温度
-20 ... 60 °C
许可证
适用范围
ATEX / 欧洲
IEC / 全球
UKEX
防爆
Dust explosion protection through housing "t"
显示与操作
操作
操作
