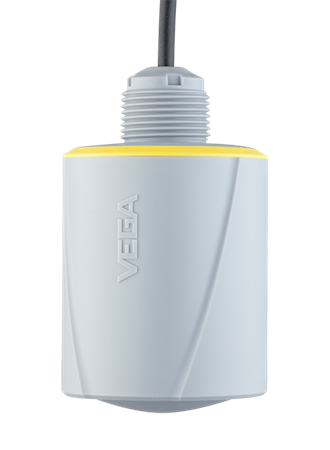

VEGAPULS C 23
Wired radar sensor for continuous level measurement
For standard measuring tasks, IP66/IP68, Type 6P
Wired radar sensor for continuous level measurement
For standard measuring tasks, IP66/IP68, Type 6P
VEGAPULS C 23
应用范围
Axial cable outlet, measuring range up to 30 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex-approval
VEGAPULS C23非常适用于在保护方式要求高的简单应用中非接触测量物位。典型应用是水处理、 泵站、雨水溢流池、明渠流量测量和监控水位。
您的获益
Exact measurement results independent of medium, process and environmental conditions
Unaffected by vessel installations due to very good signal focusing
Maintenance-free operation due to non-contact 80 GHz radar technology
技术参数
量程 - 距离
30 m [Meter - Foot]
过程温度
-40 ... 80 °C [°C - °F]
过程压力
-1 ... 3 bar [Bar - kPa - psi]
测量精度
± 2 mm
Frequency
80 GHz
Beam angle
4°
接液材质
PVDF
螺纹连接
G1, 1 NPT, R1
保护方式
IP66/IP68 (3 bar), Type 6P
输出
4 … 20 mA/HART
Modbus
SDI-12
环境温度
-40 ... 80 °C
许可证
显示与操作
操作
PC, PACTware and DTM
Smartphone / Tablet / PC via Bluetooth
