Memosens CPS72E
Memosens 2.0 ORP电极，适用于化工工艺过程和有毒介质测量

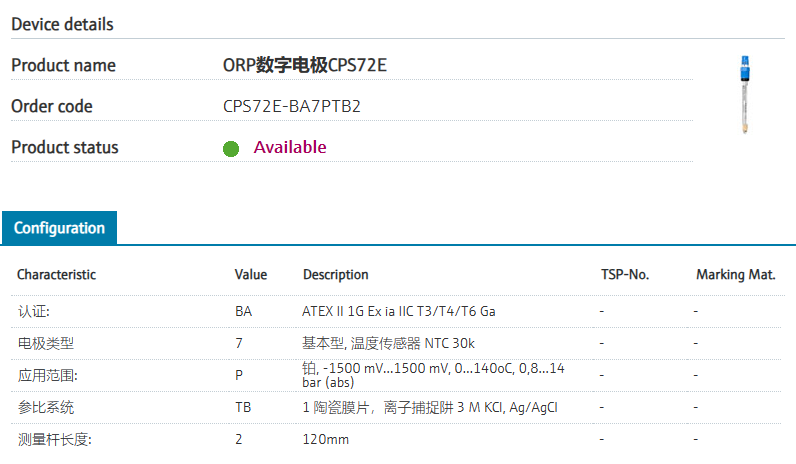

CPS72E-BA7PTB2
测量原理
ORP电极
应用
Process technology and monitoring of processes with:
• Rapidly changing ORP values
• High proportion of electrode poisons, such as H2S
特点
Digital ORP electrode for chemical process with an ion trap for poison-resistant reference
测量范围
–1 500 to 1 500 mV
测量原理
Gel compact electrode with ceramic junction
设计
All shaft lengths with temperature sensor
Advanced gel technology
材质
Sensor shaft: Glass to suit process
ORP measuring element: Platinum
Metal lead: Ag/AgCl
Open aperture: Ceramic junction, zirconium dioxide
O-ring: FKM
Process coupling: PPS fiber-glass reinforced
Nameplate: Ceramic metal oxide
外形尺寸
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.2 and 16.7 inch)
过程温度
0 to 140 °C (32 to 284 °F)
过程压力
0.8 to 14 bar (11.6 to 203 psi) (absolute)
温度传感器
NTC 30k
防爆认证
With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
hazardous areas Zone 0, Zone 1 and Zone 2.
连接
Inductive, contactless connection head with Memosens 2.0 technology
防护等级
IP68
